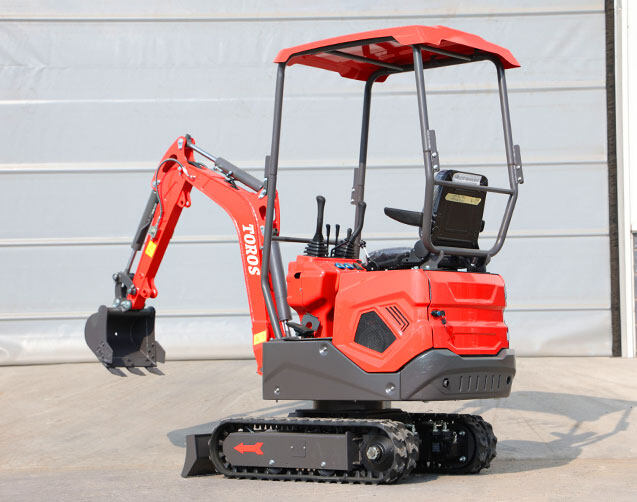

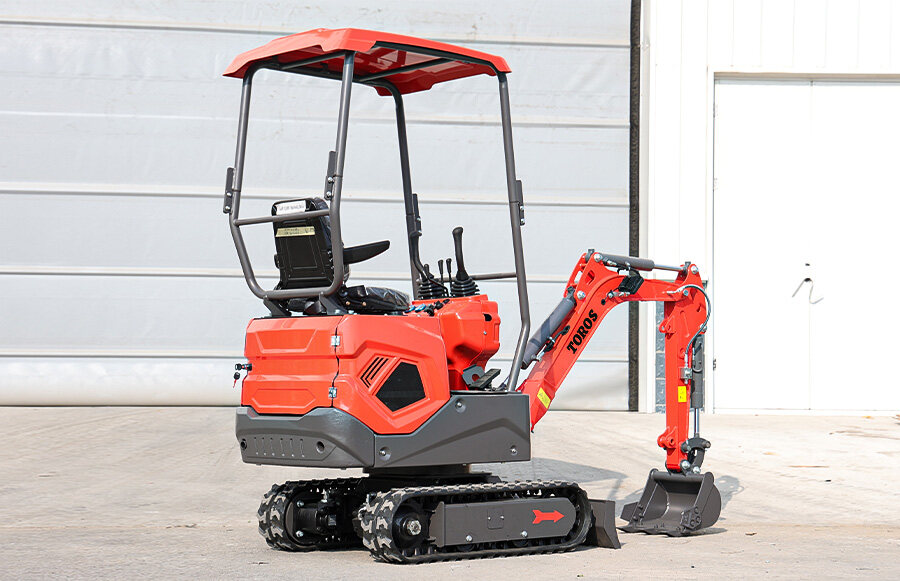

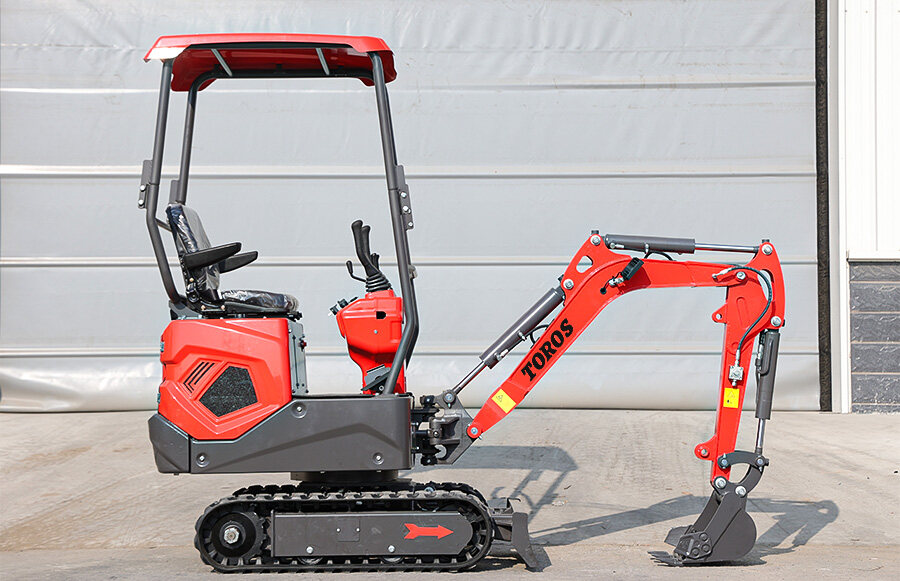

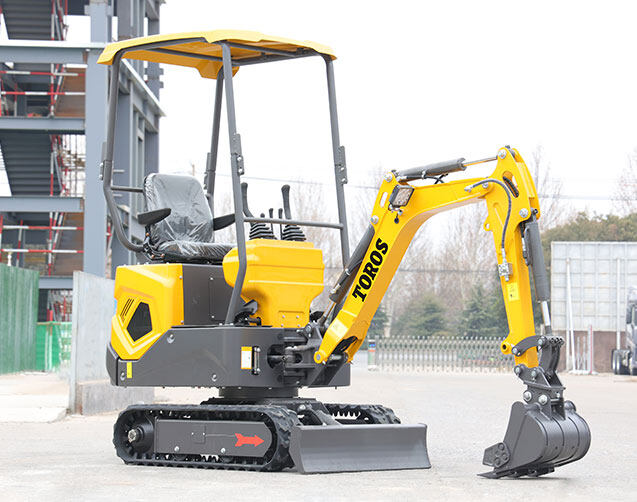

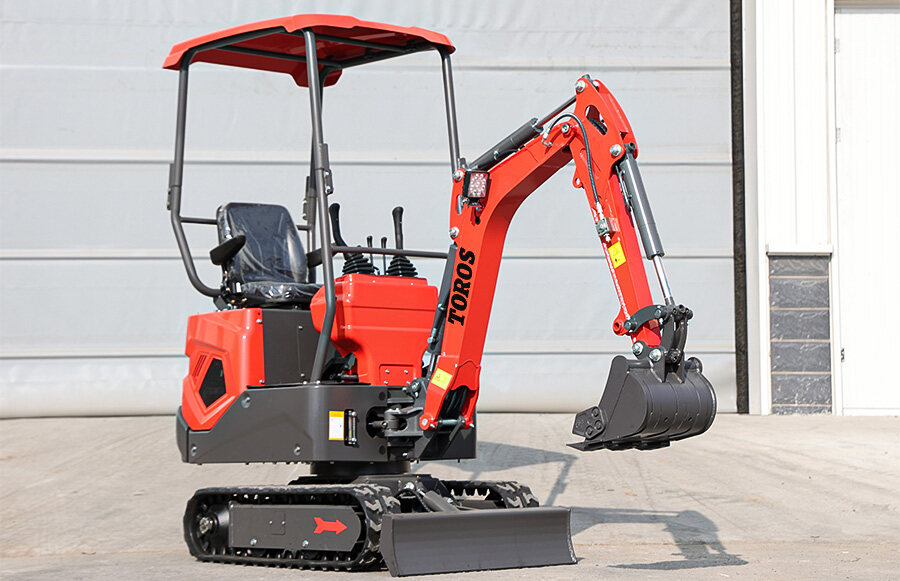

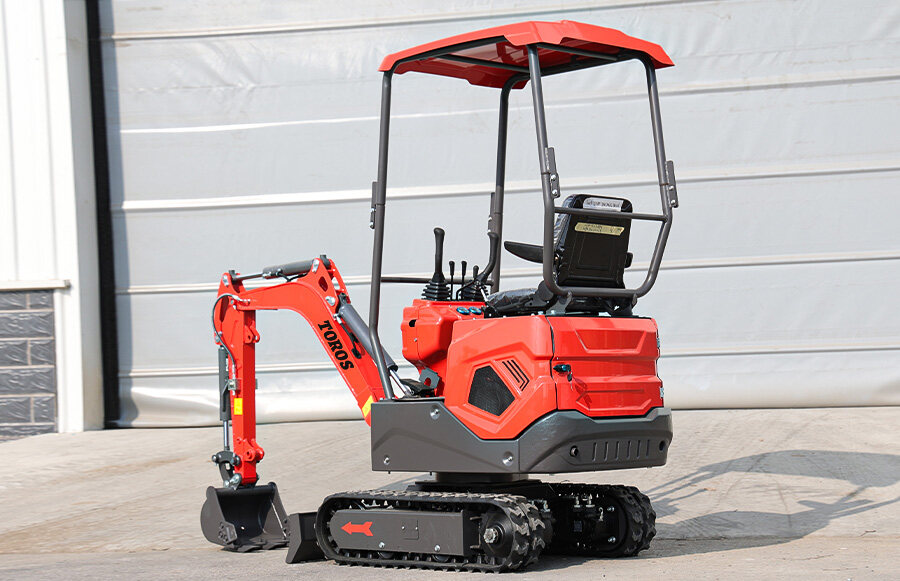

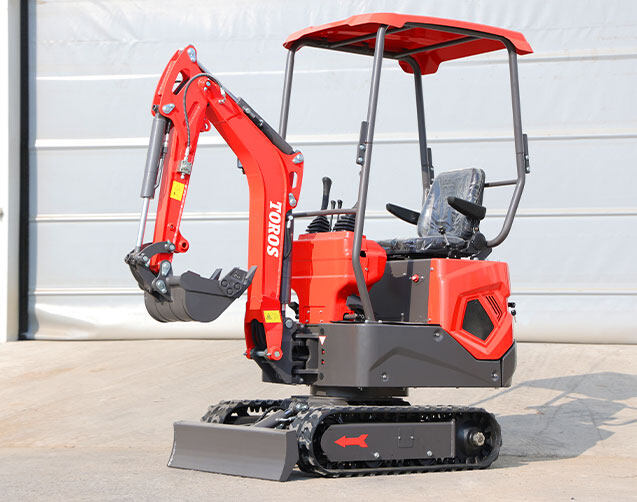

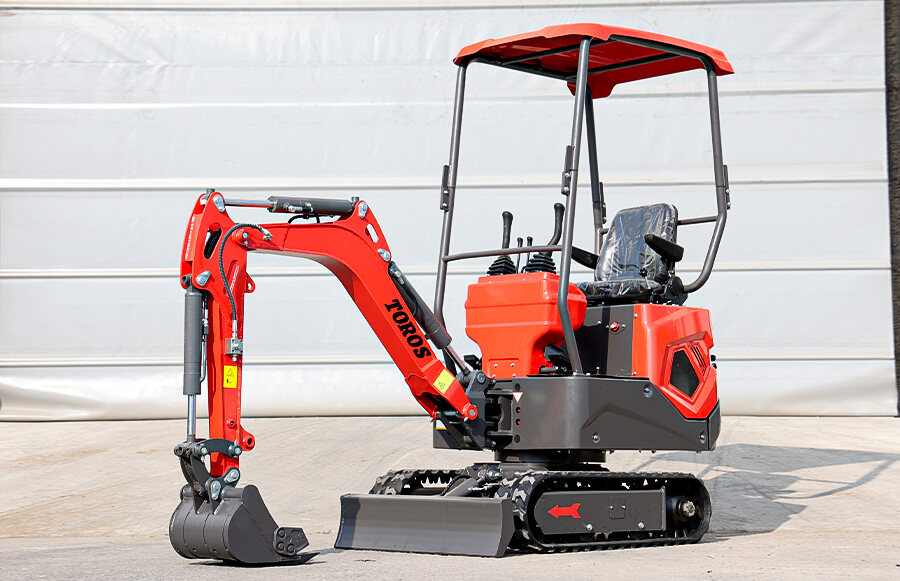

ADVANTAGES OF TE12 MINI EXCAVATORThe TE12 is designed to improve both operator comfort and job site safety without compromising compact performance. Its ergonomic pilot controls reduce unnecessary bending during operation, while the reinforced four-post canopy offers dependable protection and excellent visibility. For year-round productivity, an optional enclosed cab provides additional comfort in changing weather conditions, making the TE12 suitable for a wide range of professional applications.
Request a Quote Click here to get the best price
PARAMETERS
Model
TE-12S
Engine
KOOP192FA/BRIGGS&STRATTON/KUBOTA D722
Power
7.6Kw/10.07Kw/10.2Kw
Bucket capacity
0.02m³
Maximum driving speed
1.8Km/h
Work pressure
16Mpa
Hydraulic tank capacity
18L
Engine oil capacity
1.65L
Fuel tank capacity
5.5L
Maximum climbing ability
30°
Maximum digging force
6.5Kn

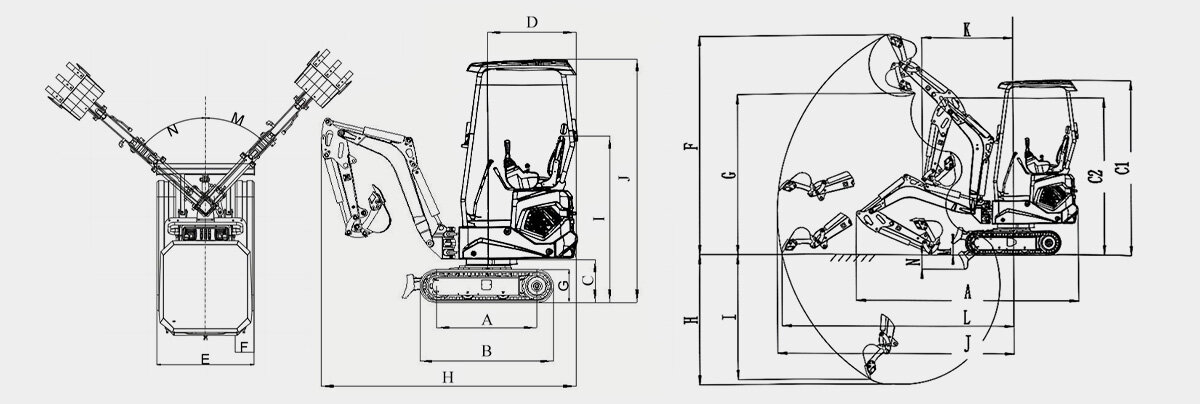

Machine size(L*W*H)
2870*930*2285mm
Maximum digging height
2490mm
Maximum unloading height
1745mm
Maximum digging depth
1670mm
Maximum vertical arm digging depth
1655mm
Maximum digging distance
3030mm
Minimum turning radius of front end
1490mm
Maximum digging ground distance
2940mm
PRODUCT DETAILS
1Germany Continental hydraulic hose, outer spring protection, Japanese NOK sealing ring.
2High-end down-press hydraulic joystick, adjustable seat with safety armrests and seat belts.
3One-piece cast side swing head.
4The engine compartment is neatly arranged and equipped with eight shock absorbers.
5Standard hydraulic oil cooler, no need to worry about heat dissipation problems, the machine can be used for a longer time.
6The real cast iron counterweight is not just an empty shell.
Performance Advantages

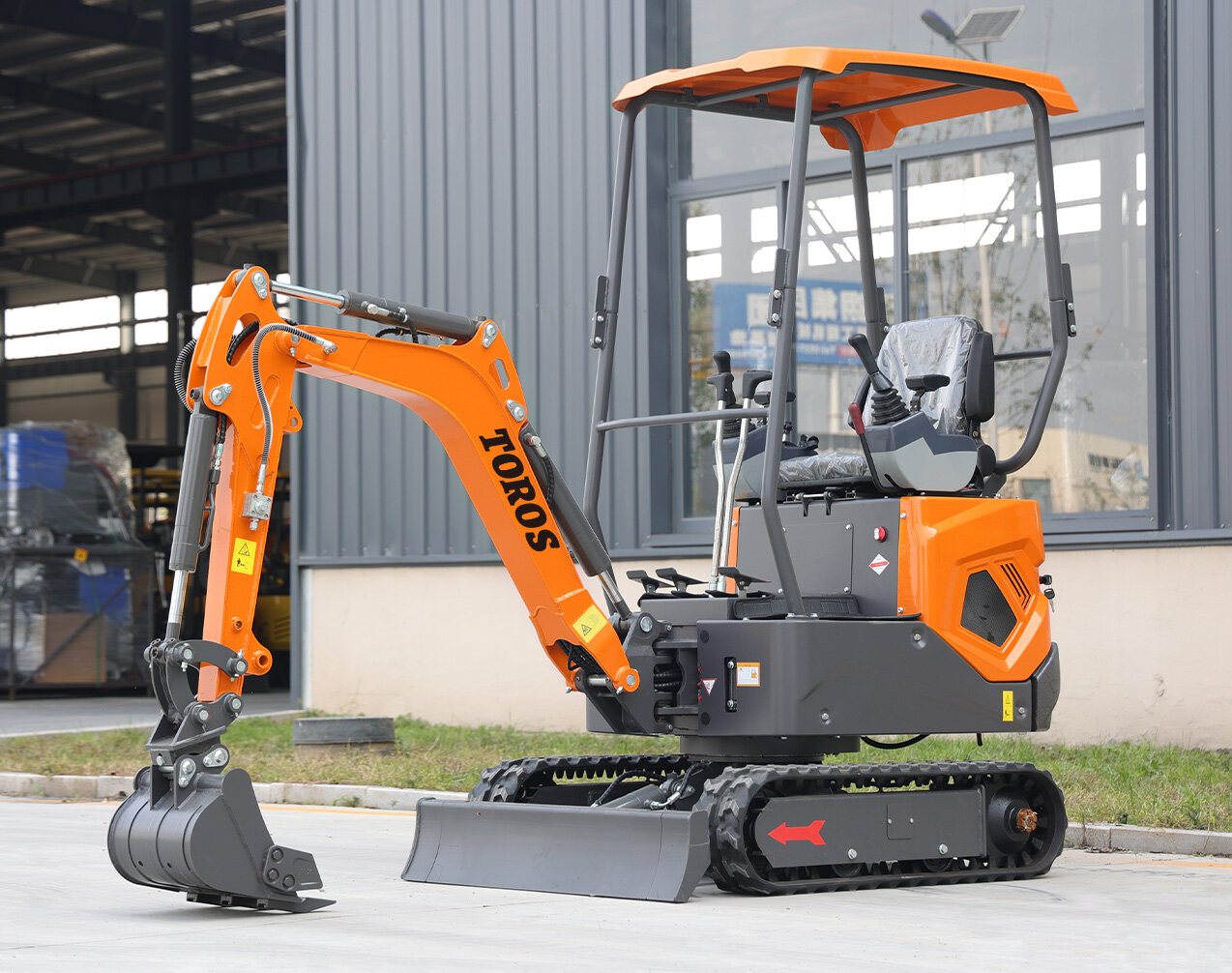

Ergonomic Pilot Controls
The pilot control layout is designed for comfortable operation without excessive bending, helping operators maintain a more natural working posture. This ergonomic design reduces fatigue during long working hours and improves overall control.

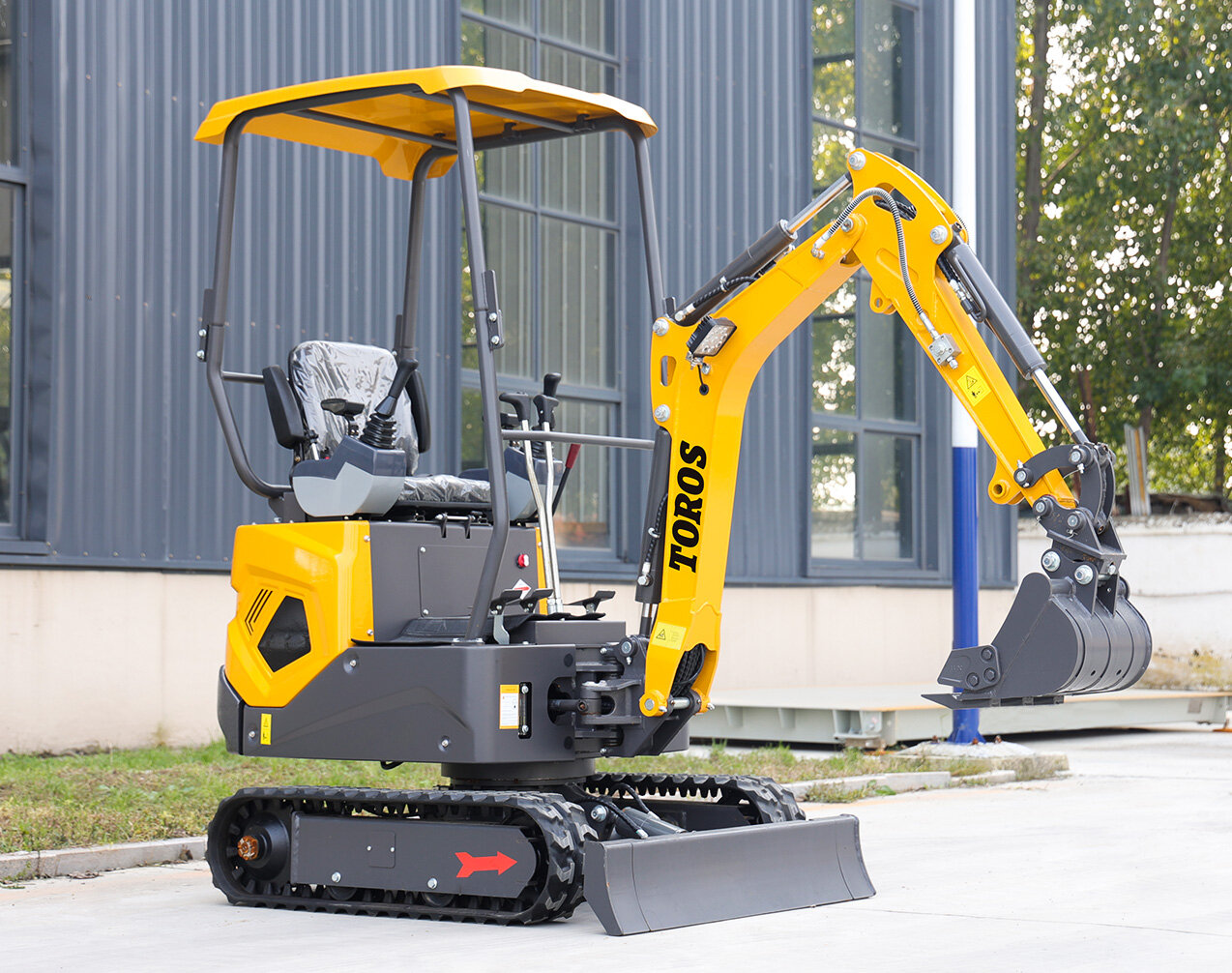

Reinforced Canopy with Cab Option
The four-post canopy provides enhanced operator protection while maintaining excellent visibility on the job site. For added comfort in changing weather conditions, the TE12 mini excavator can also be equipped with a fully enclosed cab.

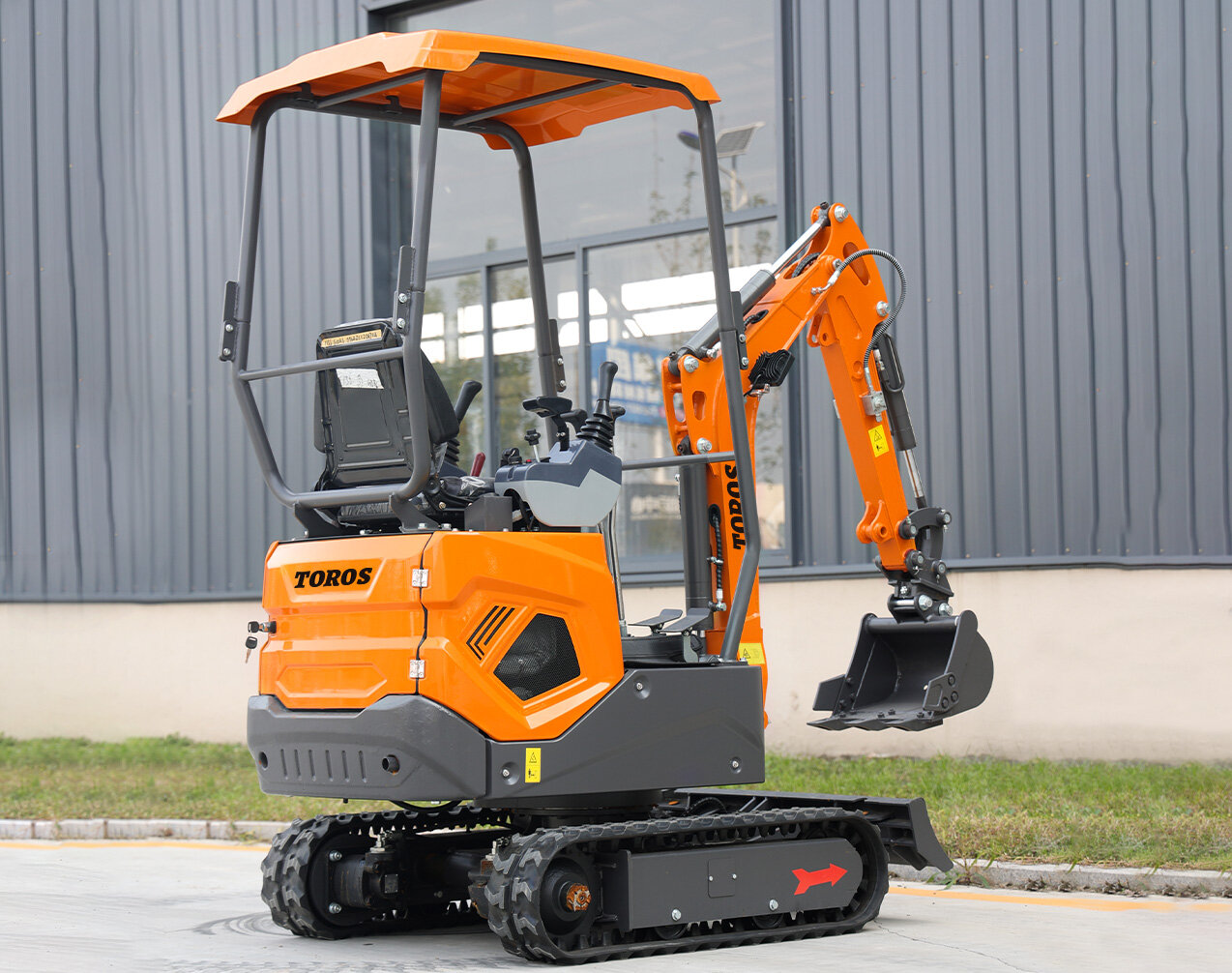

Reliable Engine & Custom Manufacturing
The mini excavator is equipped with a CE-certified EPA/EURO V compliant engine, providing dependable power while meeting European environmental standards. We also support flexible customization services, including logo branding, color schemes, engine options and attachment configurations, allowing every machine to better fit your operational needs.
