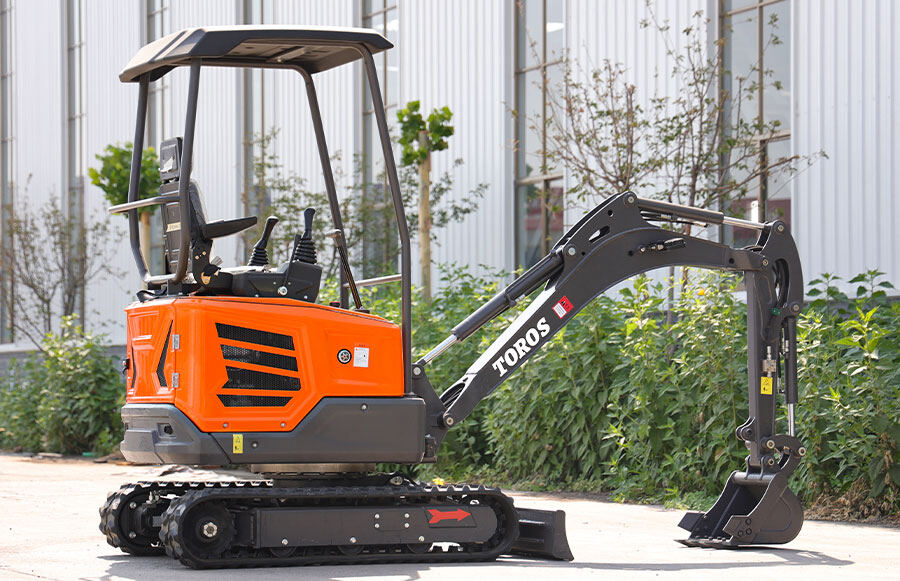

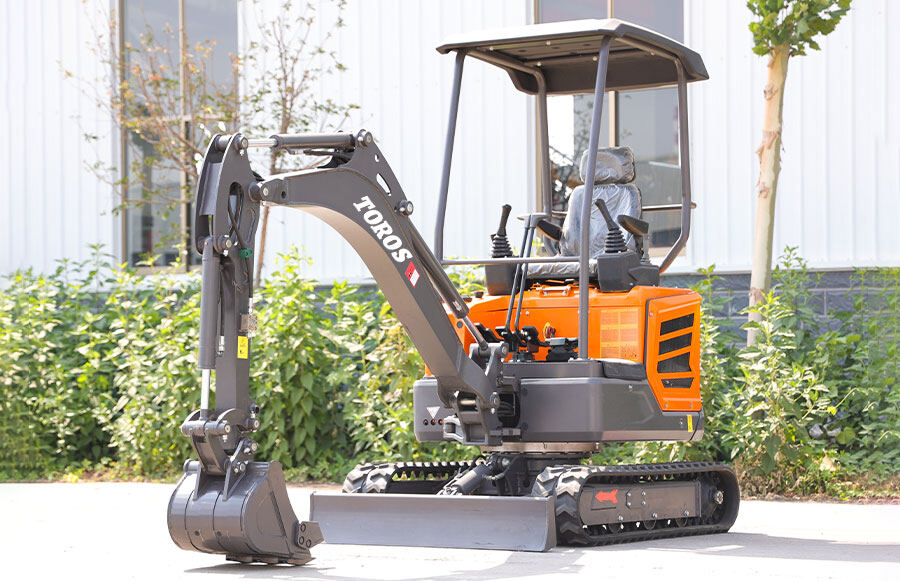

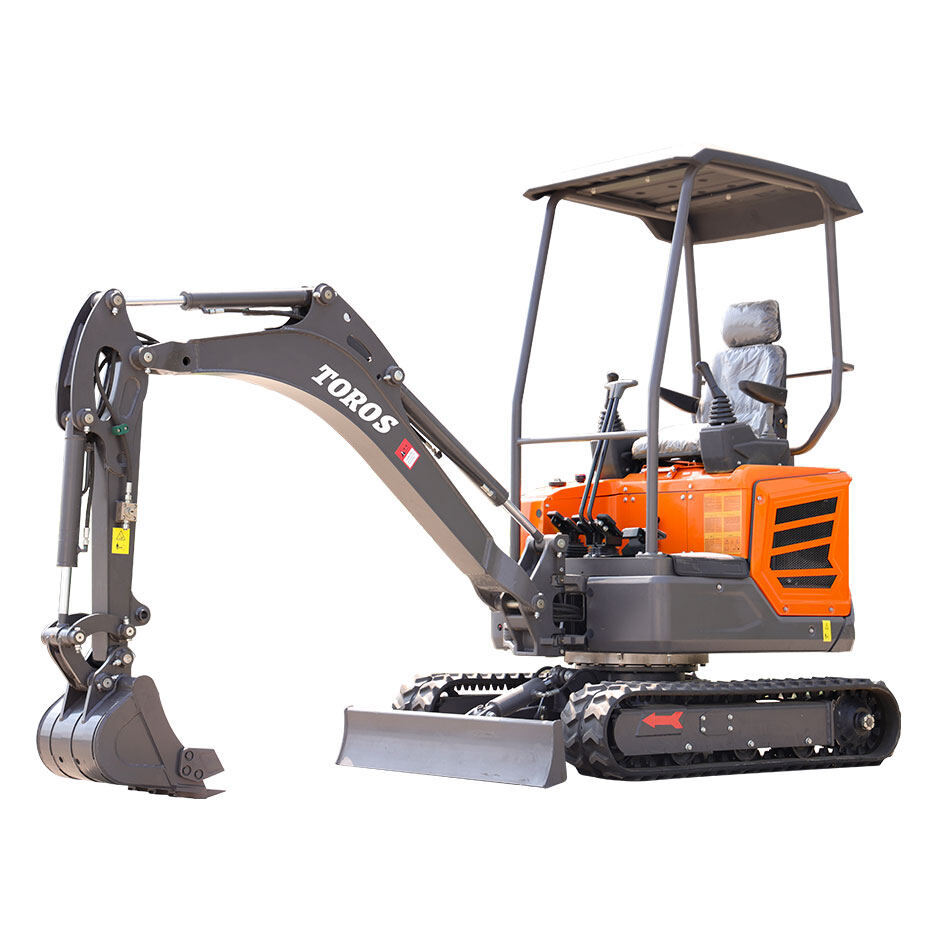

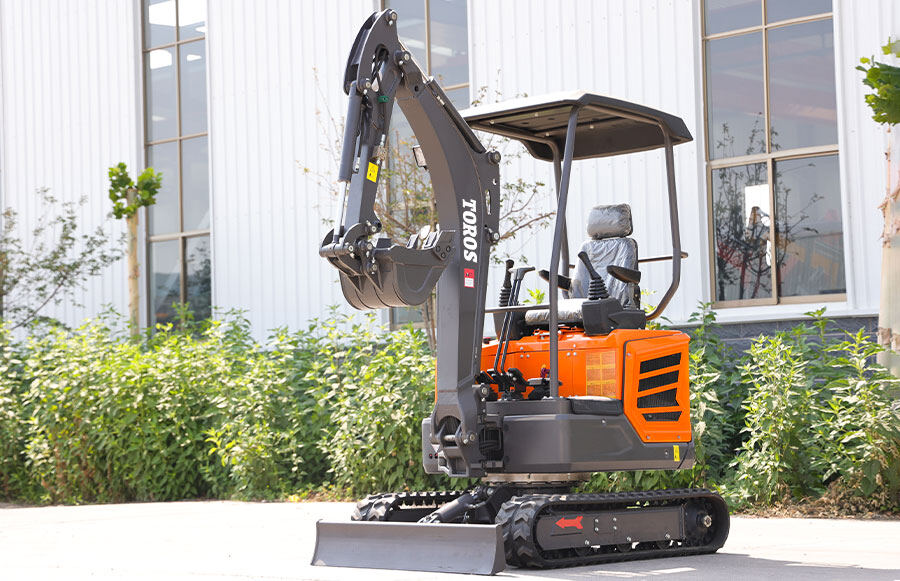

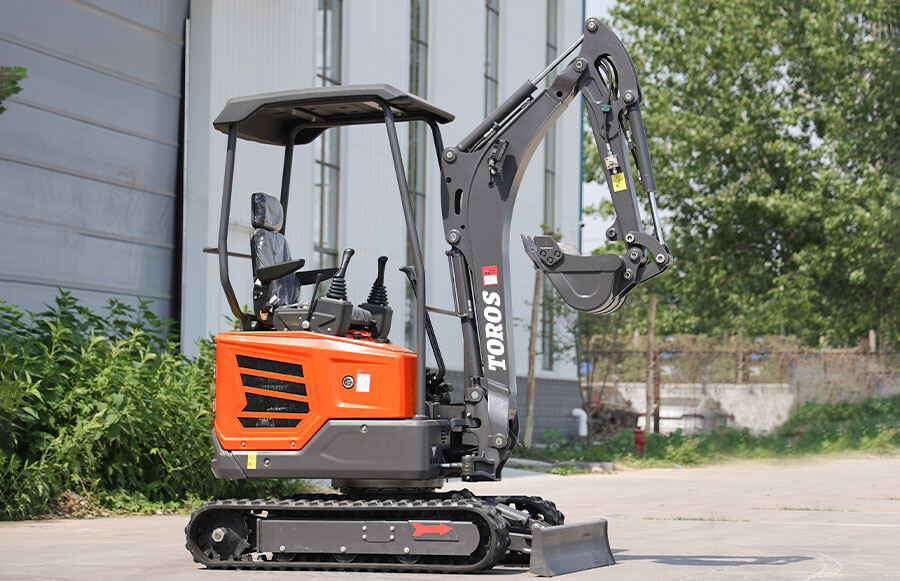

ADVANTAGES OF TE20 MINI EXCAVATORThe TE20 combines advanced maneuverability with high-performance drive components to meet the demands of modern construction projects. Its true zero tail swing design allows unrestricted rotation in confined spaces, while the dual-speed travel system and responsive swing motor improve machine mobility and working efficiency. Whether on urban job sites or landscaping projects, the TE20 delivers greater flexibility and reliable performance.
Request a Quote Click here to get the best price
PARAMETERS
Model
TE-20
Engine
KUBOTA D902/LAIDONG KM385B
Power
11.8Kw/18.1Kw
Swing Speed
10r/min
Bucket Capacity
0.03m³
Operating Weight
2000Kg
Track Length
1625mm
Dozer Blade Height
160mm
Fuel Tank Capacity
19L
Maximum Climbing Ability
30°
Maximum Digging Force
/
Machine Size(L*W*H)
3468*1200*2270mm
Maximum Digging Height
3485mm
Maximum Unloading Height
2440mm
Maximum Digging Depth
2290mm
Maximum Vertical Arm Digging Depth
1750mm
Maximum Digging Distance
3790mm
Minimum Turning Radius
1395mm
Maximum Digging Ground Distance
3735mm
Track Material
Rubber
PRODUCT DETAILS
1Germany Continental hydraulic hose, outer spring protection,Japanese NOK sealing ring.
2The boom cylinder is located on top, and the hydraulic hoses are hidden inside.
3One-piece cast side swing head.
4Hydraulic joystick, adjustable seat with safety armrests and seat belts.
5The engine compartment is neatly arranged and equipped with eight shock absorbers.
6The real cast iron counterweight is not just an empty shell.
performance advantages

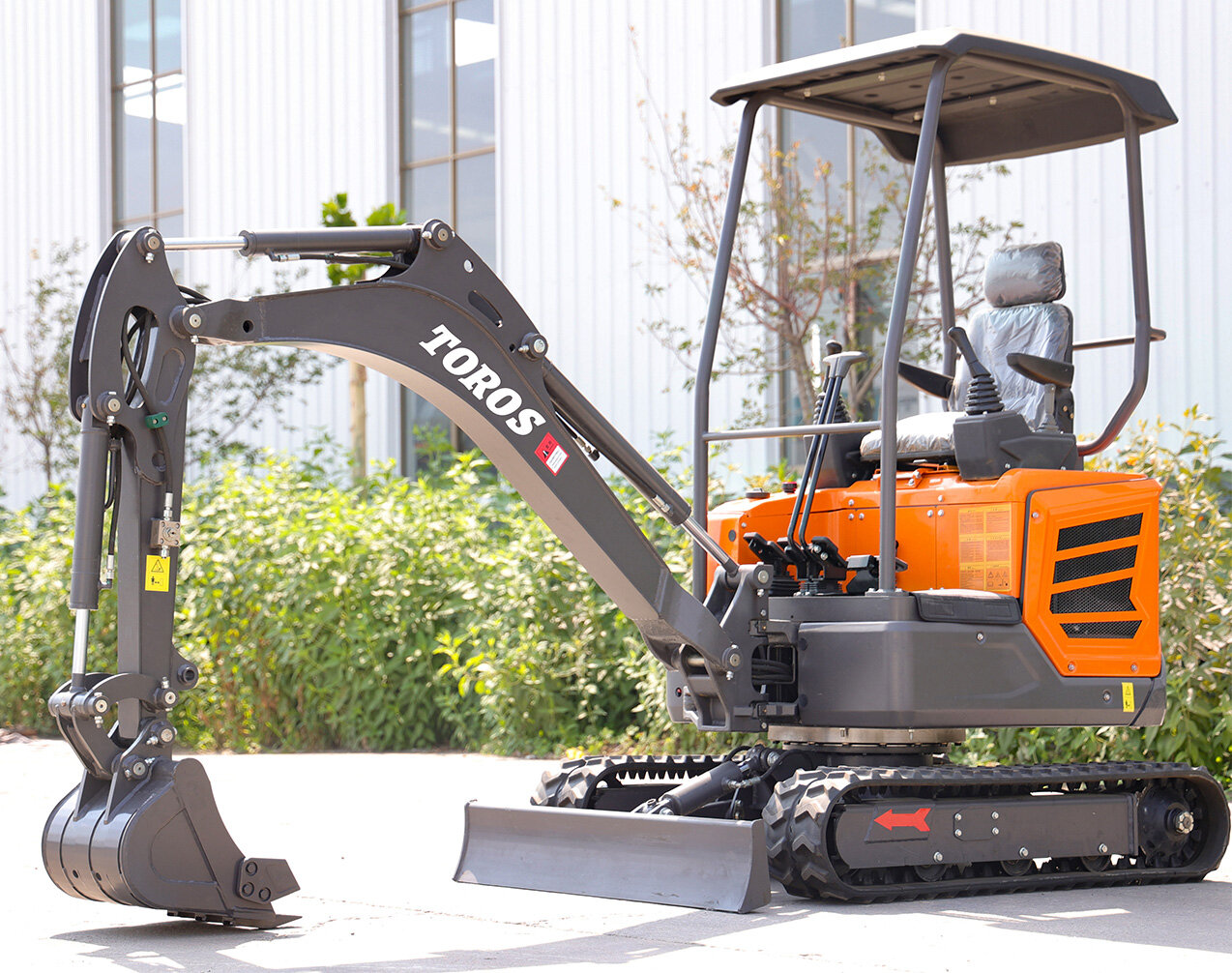

True Zero Tail Swing
With a true zero tail swing design, the TE20 mini excavator rotates freely without the rear body extending beyond the tracks. This allows safer, more confident operation in tight work areas while maximizing maneuverability around obstacles

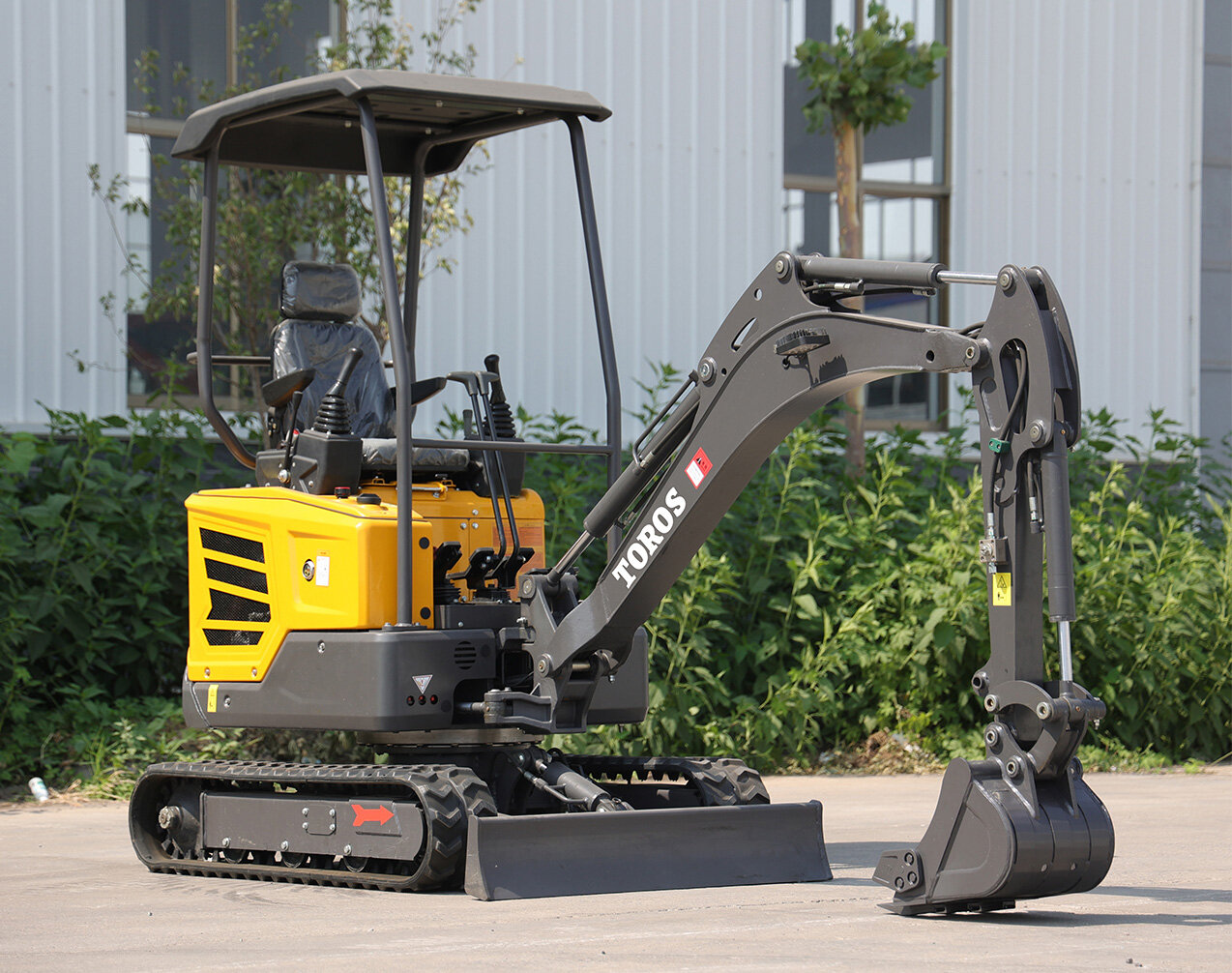

Dual-Speed Travel System
Equipped with dual-speed travel motors and a high-performance swing motor, the TE20 mini excavator delivers smoother machine movement, faster job site travel and responsive rotation, helping improve productivity across a wide range of excavation applications.

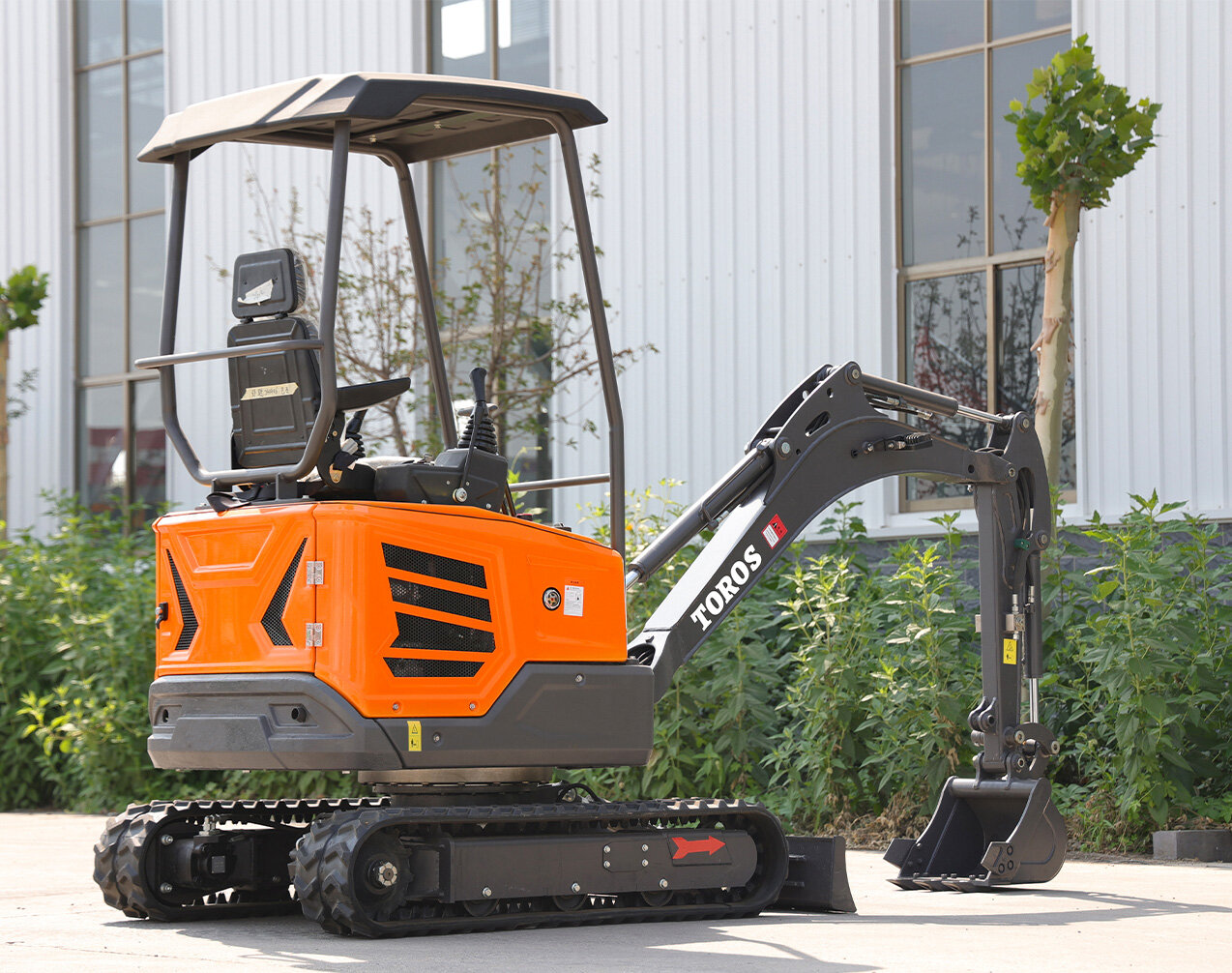

Reliable Engine & Custom Manufacturing
The mini excavator is equipped with a CE-certified EPA/EURO V compliant engine, providing dependable power while meeting European environmental standards. We also support flexible customization services, including logo branding, color schemes, engine options and attachment configurations, allowing every machine to better fit your operational needs.
