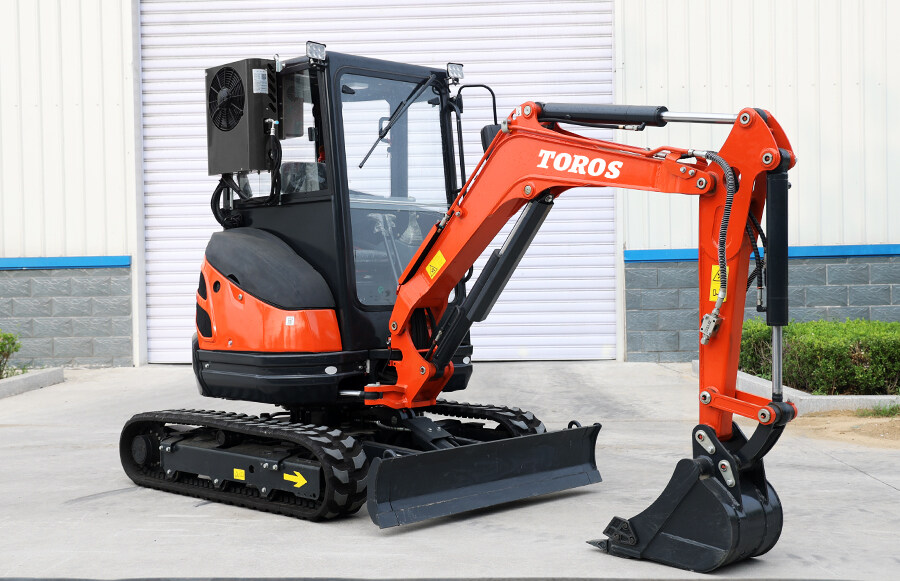

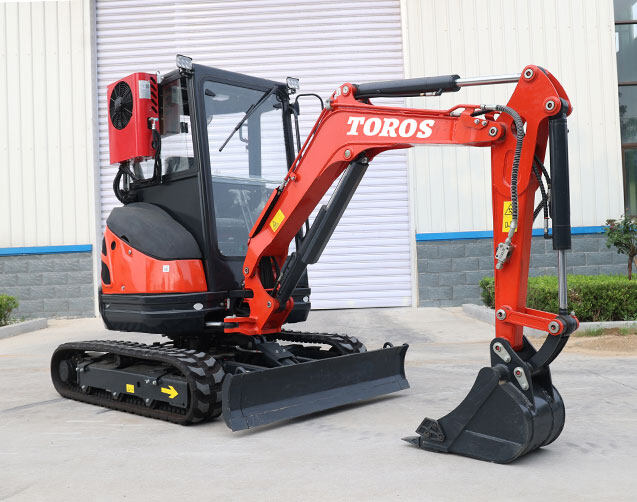

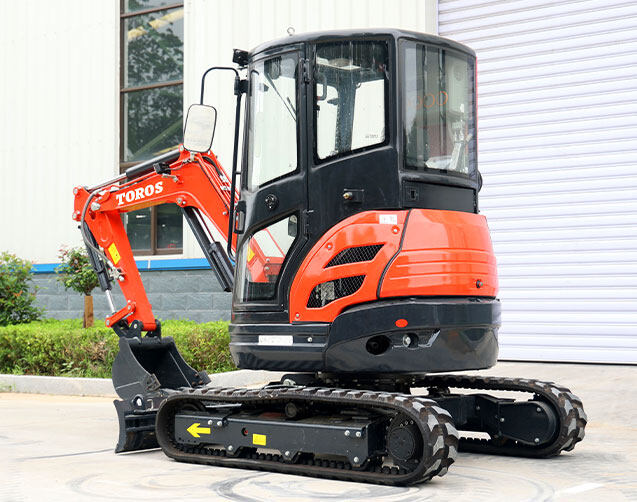

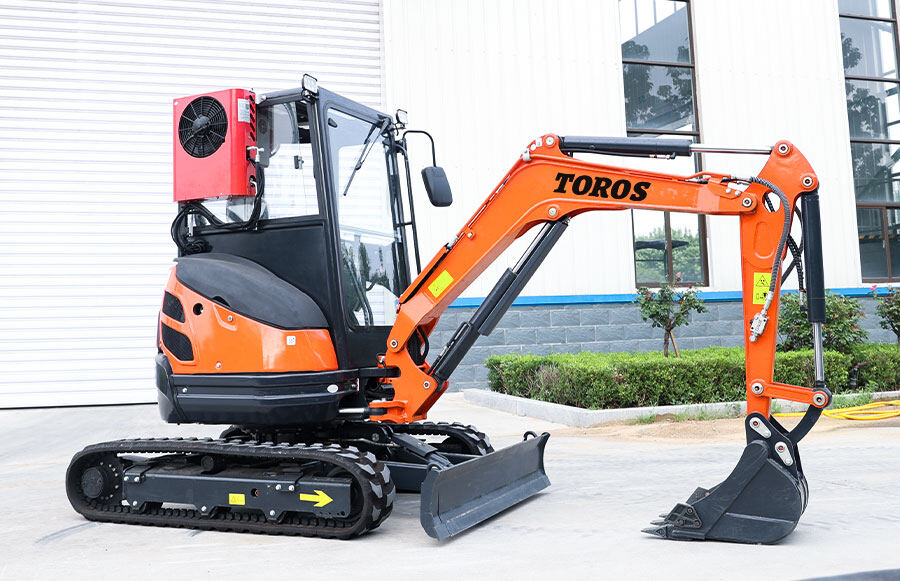

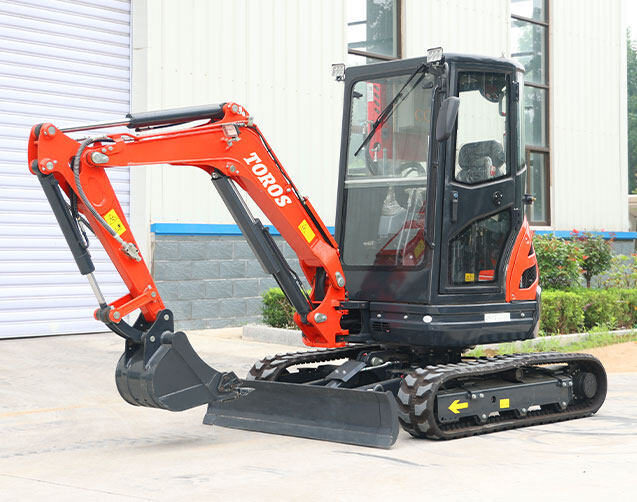

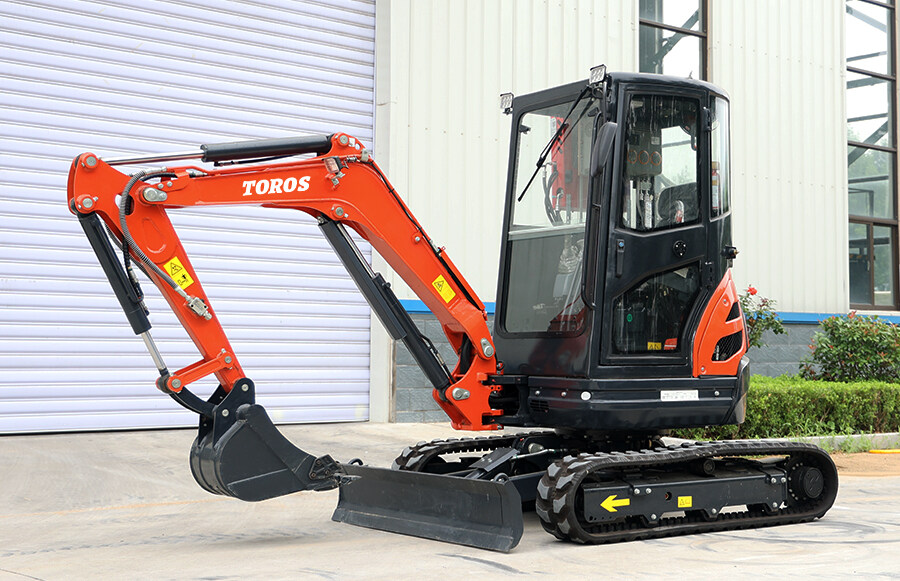

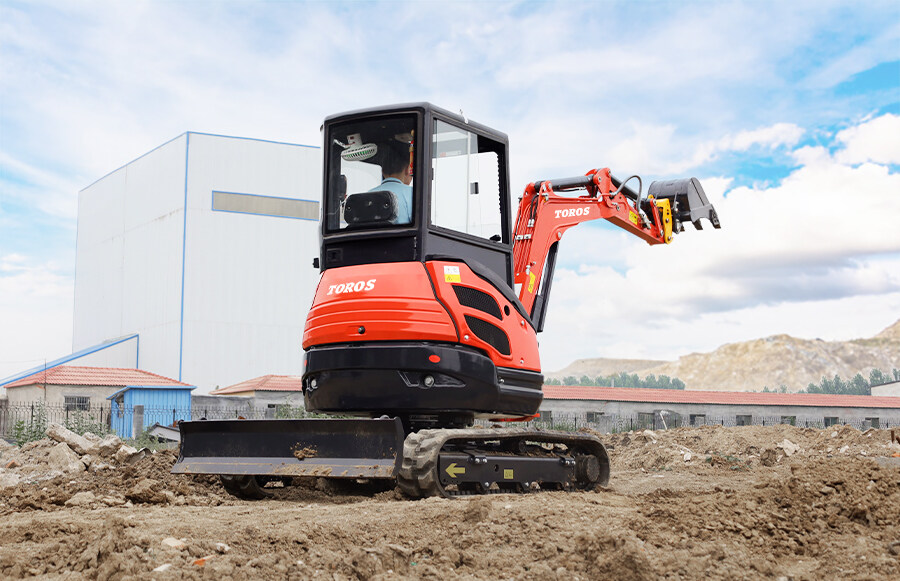

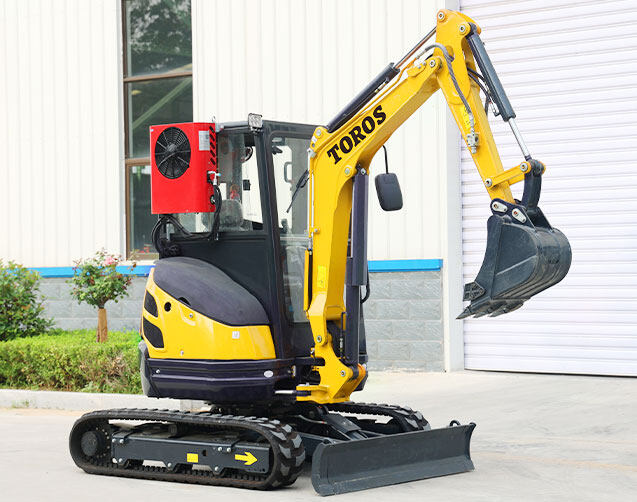

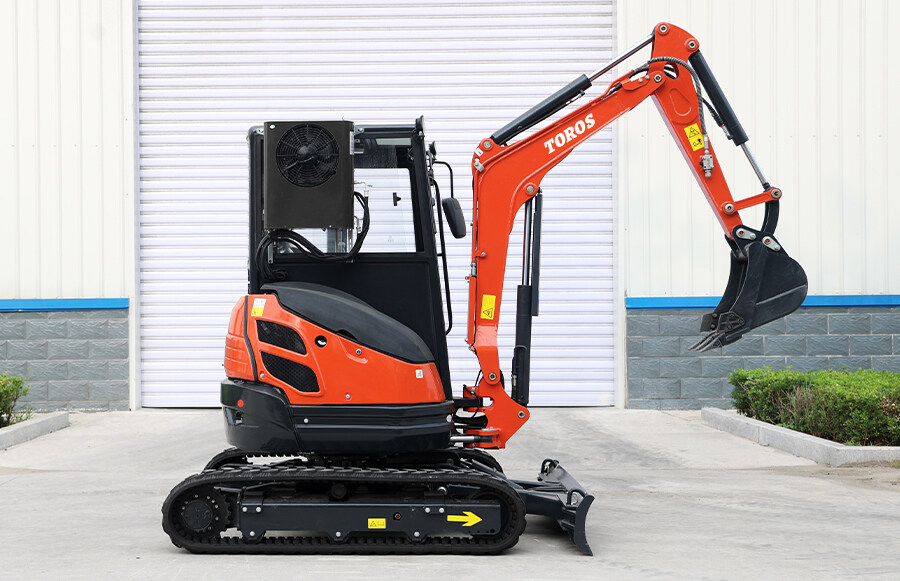

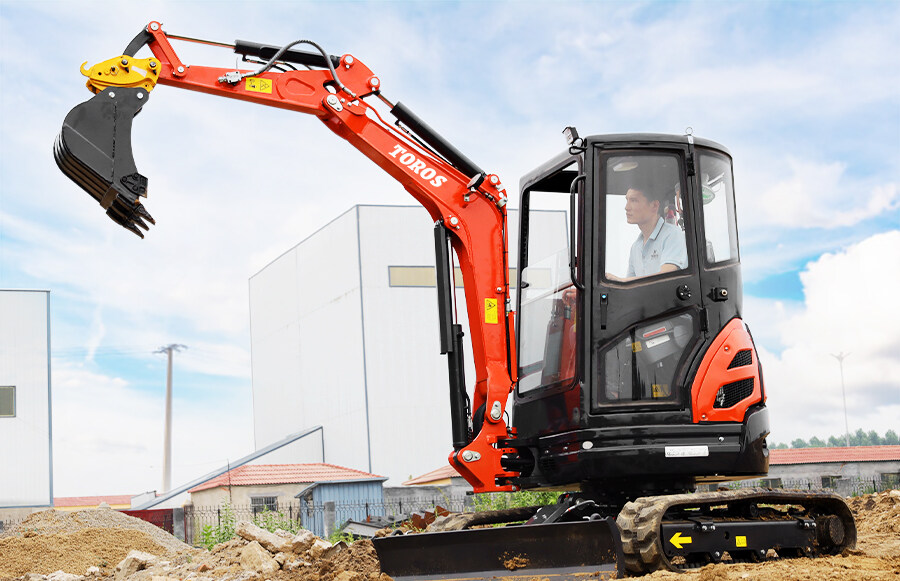

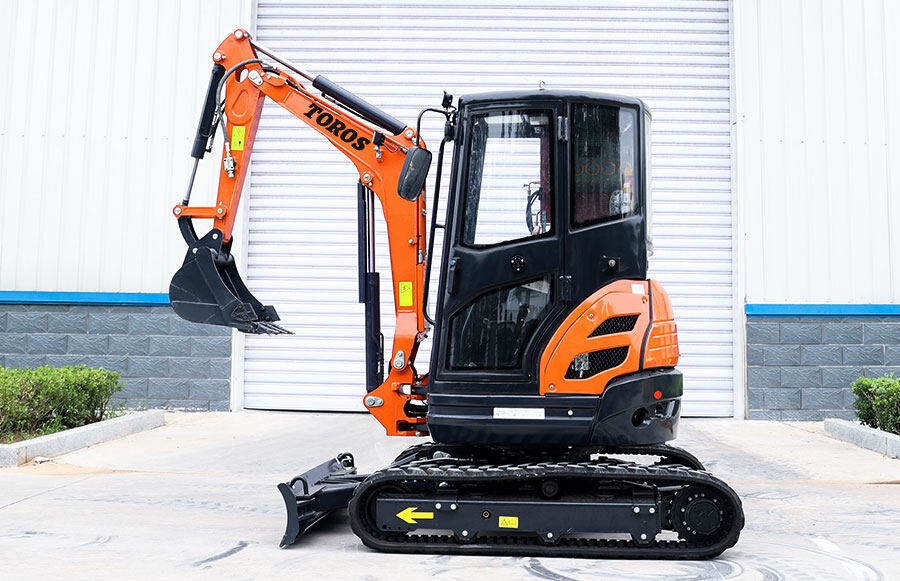

1.TE26S-Mini excavator

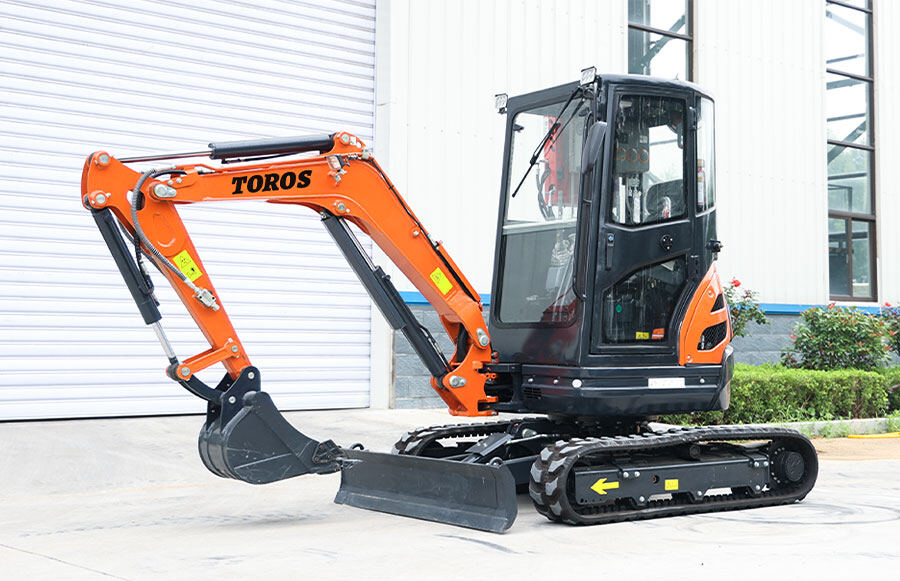

  • 1.TE26S-Mini excavator
  • 2.TE26S-Mini excavator
  • 3.TE26S-Mini excavator

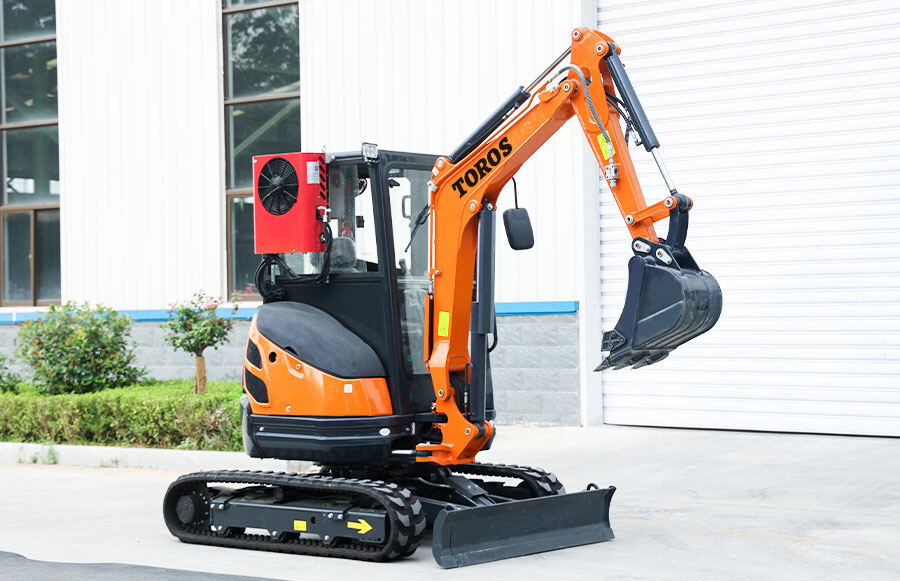

  • 4.TE26S-Mini excavator

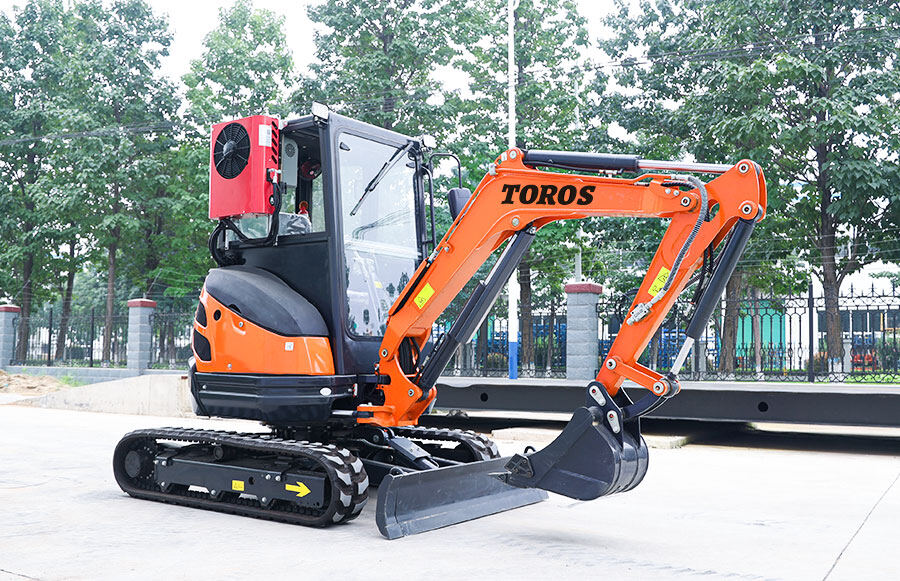

  • 5.TE26S-Mini excavator

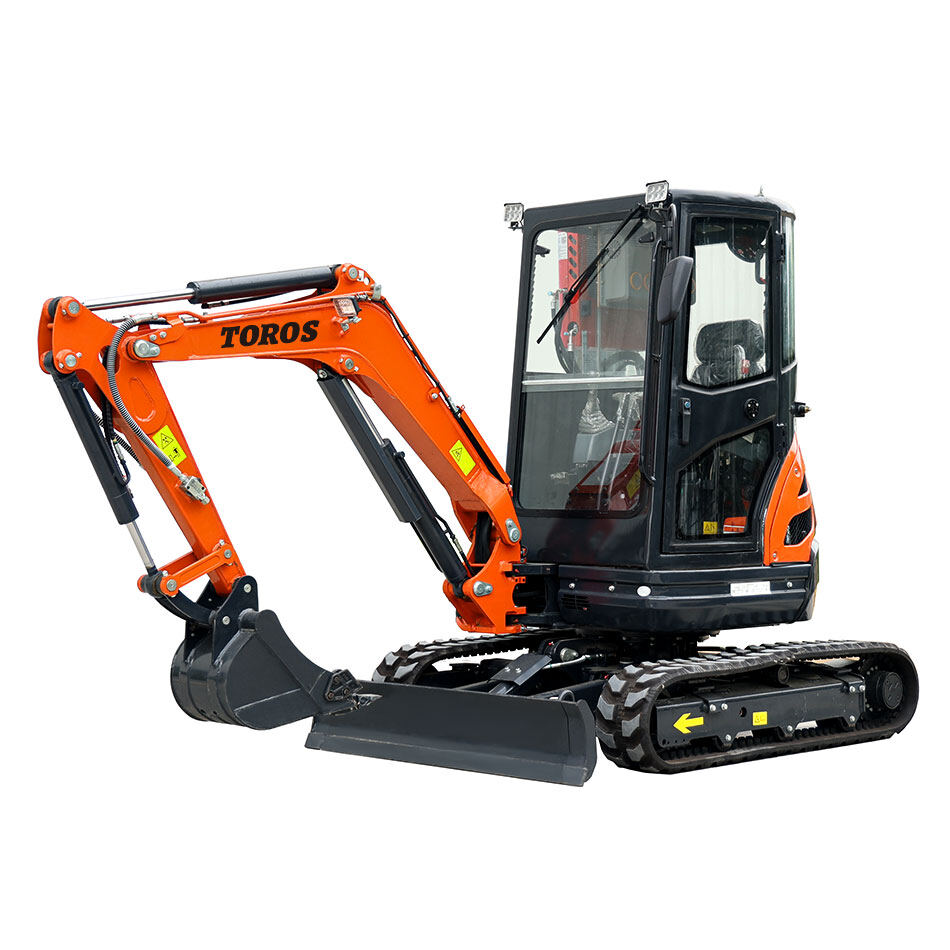

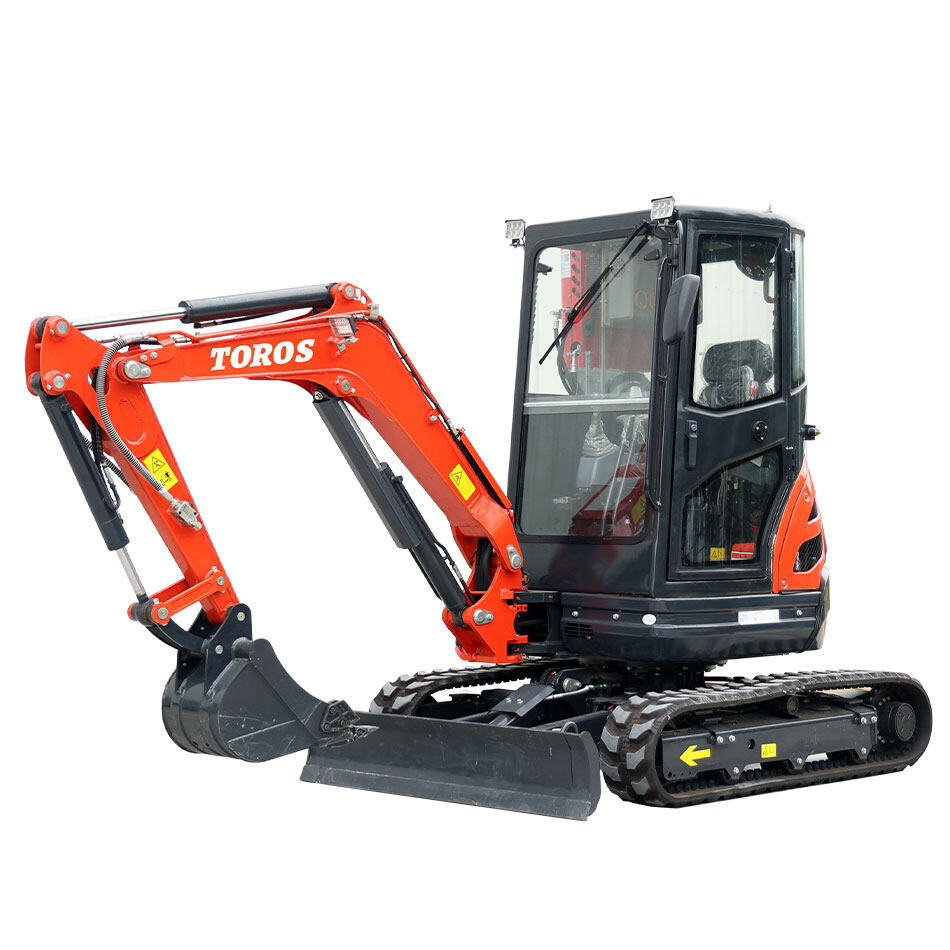

TOROS/TE-26S
Mini Excavators
  • EngineKubota
  • Power18.2kW
  • Dimension3850*1300*2380mm
  • Bucket Capacity0.066m³
GET YOUR HANDS ON ONE
  • Submit Form
  • View Video
ADVANTAGES OF TAILLESS 2.6 TON EXCAVATOR
The tailless design of the 2.6 ton excavator allows for exceptional maneuverability, especially in confined spaces and tight job sites. Unlike traditional excavators with rear-end extensions, the absence of a tail enhances the machine's agility, enabling it to navigate through narrow areas effortlessly. This compactness ensures access to locations where conventional excavators might struggle to operate efficiently.
Request a Quote
Click here to get the best price
PRODUCT HIGHLIGHTS
  • Boom swing
    Space
    Newly upgraded dashboard

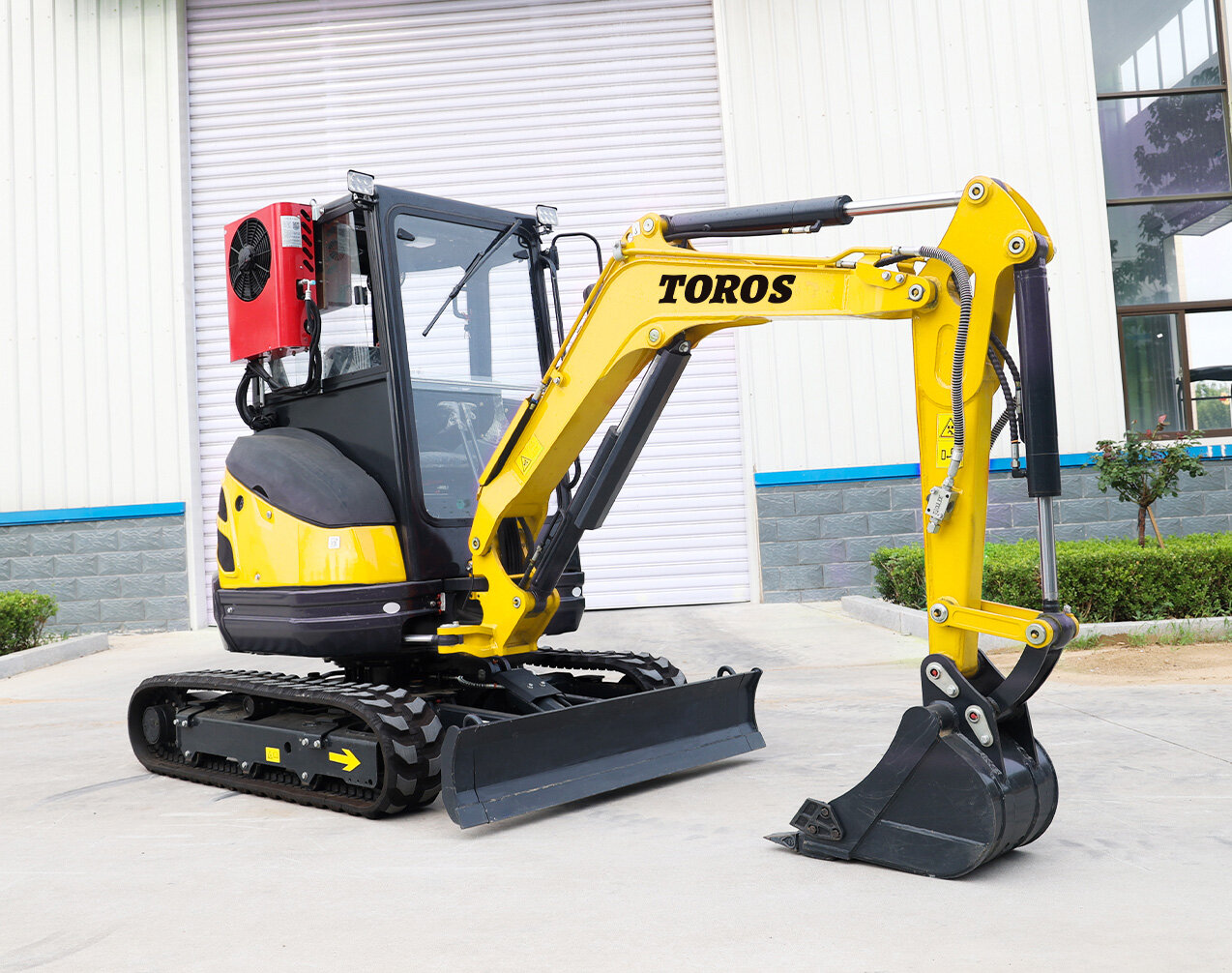

    Color can be customized
Accessories
Parameters
Model TE26s
Engine Kubota D1105
Power 18.2Kw
Swing speed 9.5r/min
Bucket capacity 0.066m³
Operating weight 2600kg
Track length 1860mm
Dozer blade height 292mm
fuel tank capacity 28L
Maximum climbing ability 30°
Maximum digging force 18.4KN

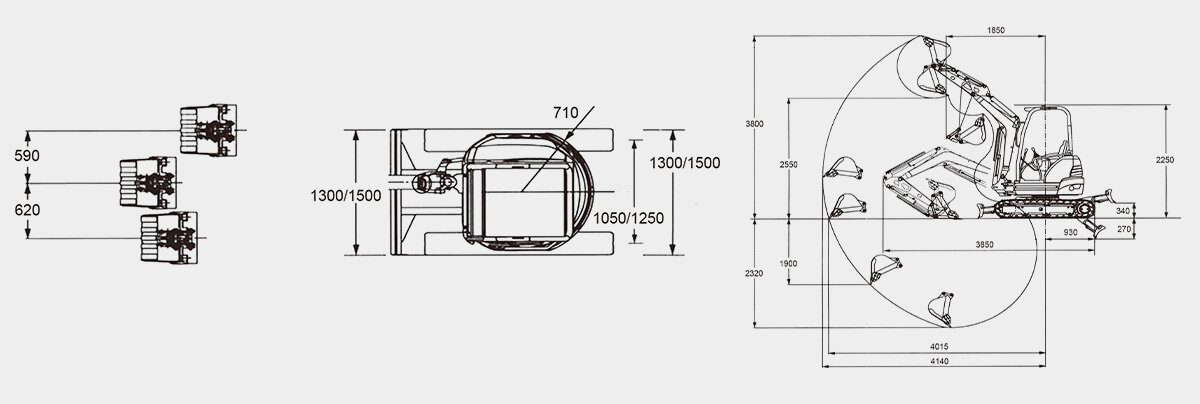

Machine size(L*W*H) 3850*1300*2380mm
Maximum digging height 3880mm
Maximum unloading height 2550mm
Maximum digging depth 2320mm
Maximum vertical arm digging depth 1900mm
Maximum digging distance 4140mm
Minimum turning radius of front end 1850mm
Maximum digging ground distance 4015mm
Track material Rubber/Steel
