ADVANTAGES OF TE10 MINI EXCAVATORThe TE10 builds on the advantages of a compact excavator by offering improved operating comfort and enhanced machine protection. Standard hydraulic pilot controls provide smooth and precise handling, while the upper-mounted boom cylinder is better protected from impacts during demanding work. Designed for daily construction, landscaping and municipal projects, the TE10 delivers reliable performance with greater durability and operator confidence.
Request a Quote Click here to get the best price
PARAMETERS
Model
TE-10X
Engine
KO0P192FABRIGGS&STRATTON
Power
7.6Kw/10.07Kw
Bucket capacity
0.022m³
Maximum driving speed
1.2Km/h
Work pressure
16Mpa
Hydraulic tank capacity
18L
Engine oil capacity
1.65L
Fuel tank capacity
8L
Maximum climbing ability
30°
Maximum digging force
6.5Kn

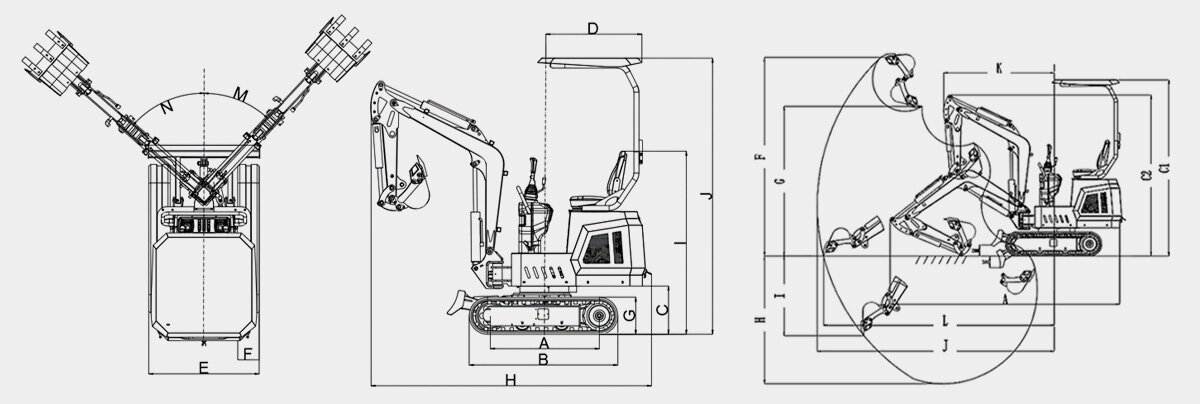

Machine size(L*W*H)
2870*930*2213mm
Maximum digging height
2490mm
Maximum unloading height
1745mm
Maximum digging depth
1725mm
Maximum vertical arm digging depth
1655mm
Maximum digging distance
3030mm
Minimum turning radius of front end
1490mm
Maximum digging ground distance
2940mm
PRODUCT DETAILS
performance advantages

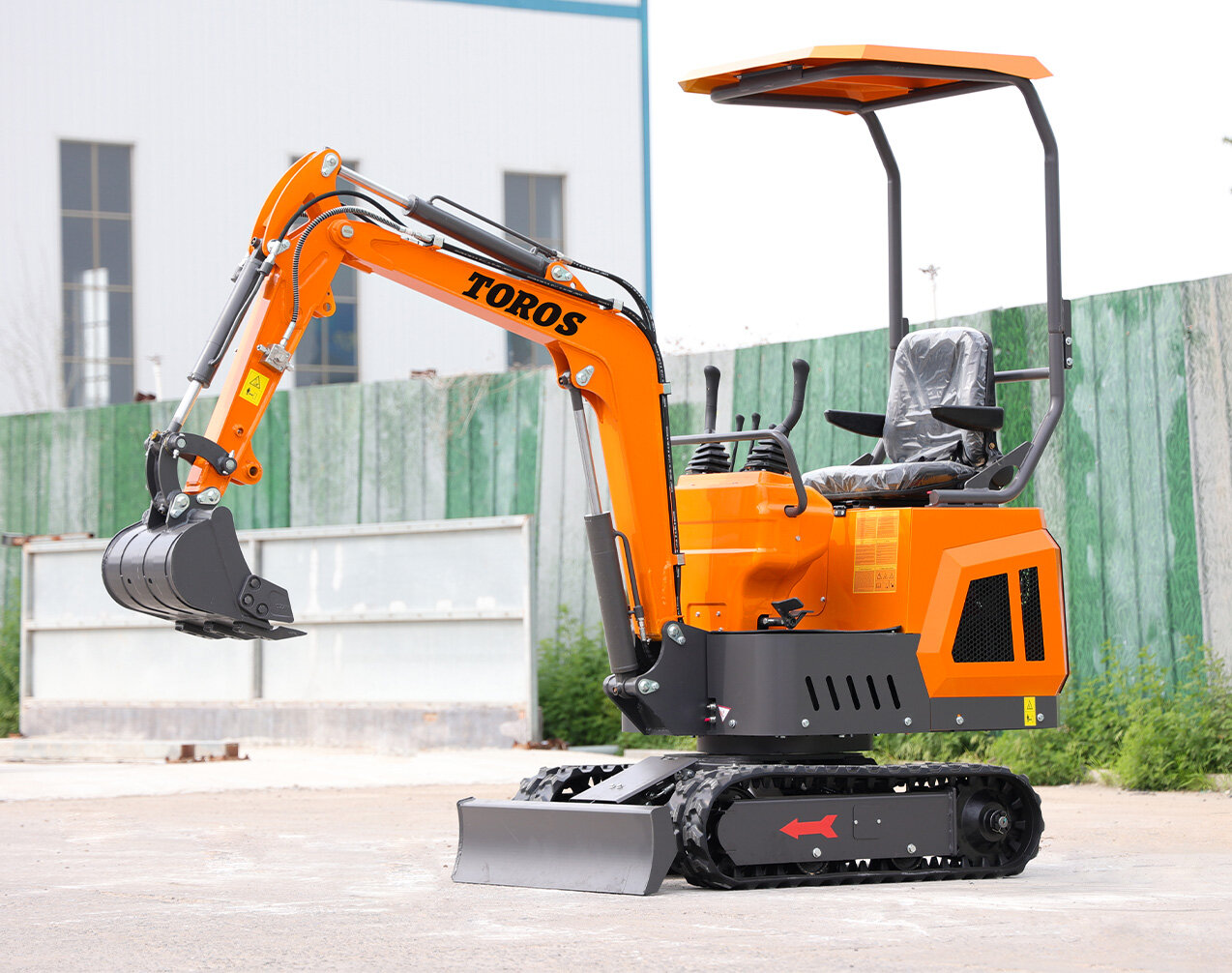

Protected Hydraulic Cylinder
The boom cylinder is mounted on the upper side to reduce exposure to rocks, debris and accidental impacts during operation. This protective design helps extend component life while lowering the risk of damage on demanding job sites.

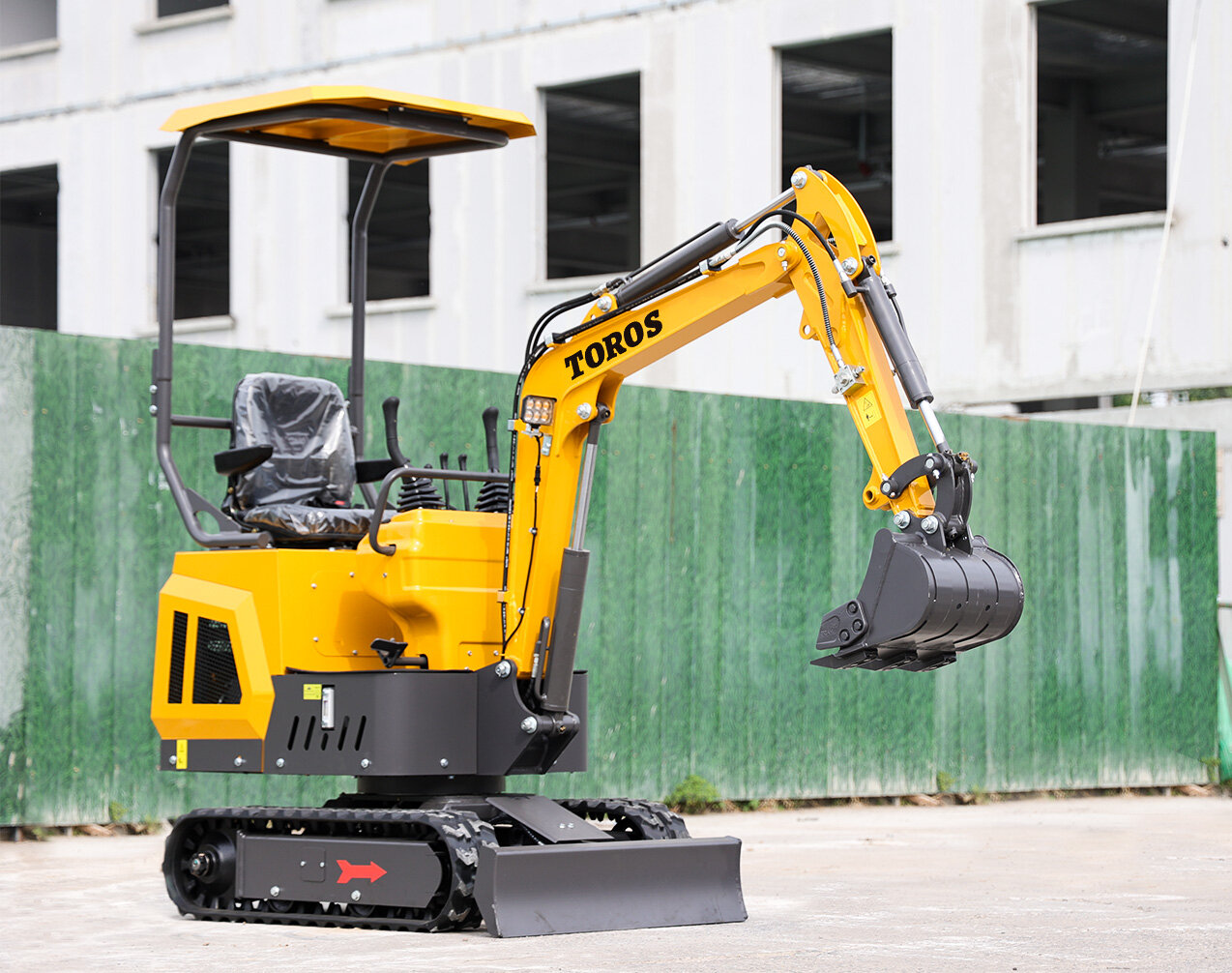

Standard Hydraulic Pilot Controls
Equipped with a full hydraulic pilot control system as standard, the TE10 mini excavator delivers smoother operation, precise handling and reduced operator fatigue. The responsive controls help improve efficiency across a wide range of excavation tasks.

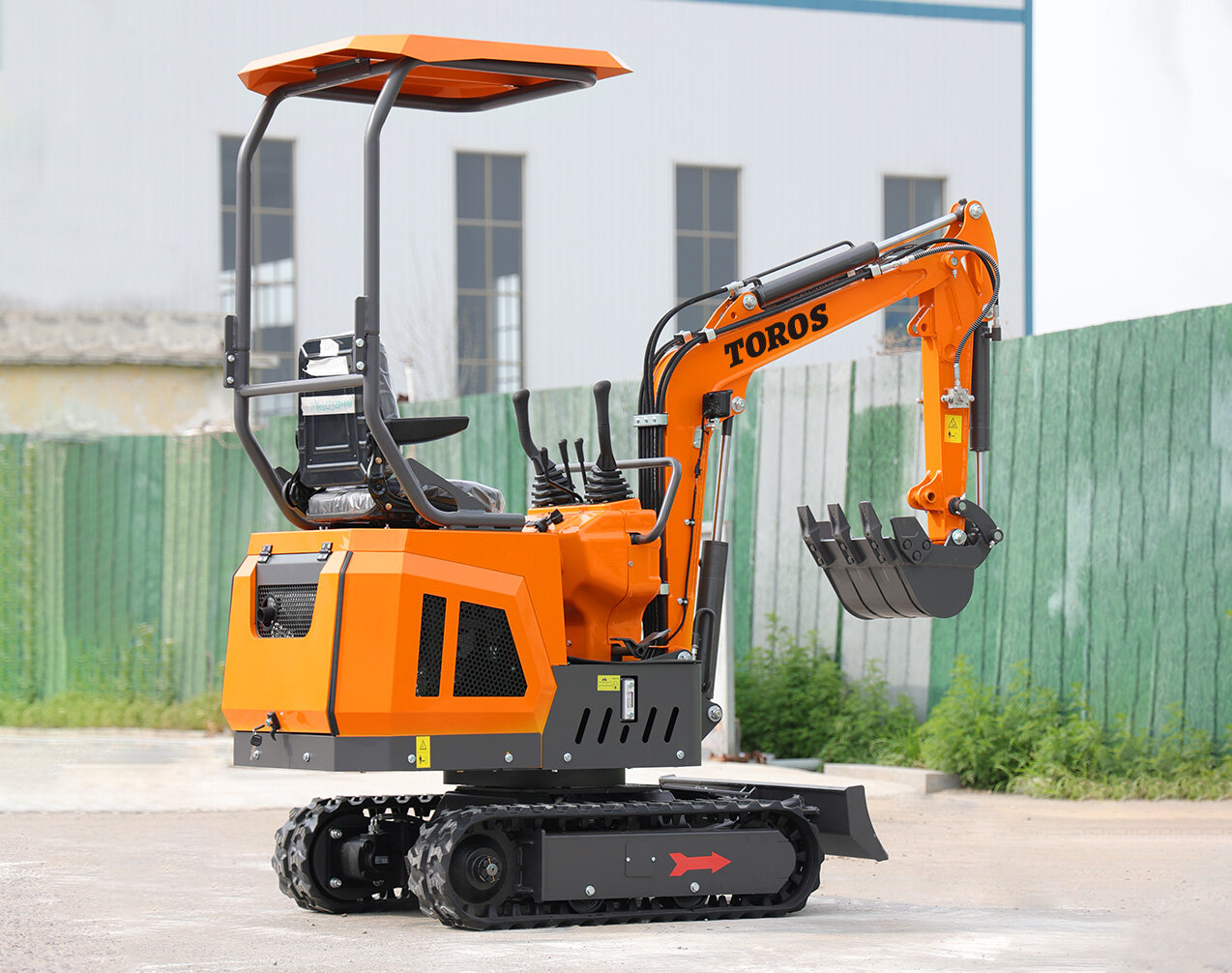

Reliable Engine & Custom Manufacturing
The mini excavator is equipped with a CE-certified EPA/EURO V compliant engine, providing dependable power while meeting European environmental standards. We also support flexible customization services, including logo branding, color schemes, engine options and attachment configurations, allowing every machine to better fit your operational needs.
Overseas warehouses
We specialize in manufacturing superior Mini Excavators to bring you peace of mind in construction equipment.We understand the importance of having reliable and efficient machinery that can tackle any task with ease.With our cutting-edge technology and unwavering commitment to quality.we guarantee a powerful and versatile lineup of Mini Excavators that will exceed your expectations.
Fast delivery
Short delivery waiting time and delivery nearby
Recruiting agents
It allows small agents to easily pick up goods and lowers the threshold
After-sales services
1-hour quick response, one-on-one service and problem solving
